COMPASS ST-1500 Sliding Table

Sliding Table Attachment for Table Saws has been around for many decades in the market, but you can hardly find a sliding table that perfectly serves your purposes in functionality, capacity, accuracy and reliability.

Harvey has been thinking about this device for long time, trying to create an ideal Sliding Table to facilitate your satisfactory table saw operations. After decade of research and experiments, we are excited to introduce the new COMPASS ST-1500 SLIDING TABLE for the global woodworkers!

The Compass ST-1500 Sliding Table is constructed with an Industrial Grade Slider, and an Extremely Accurate Miter Cutting Fence System. The Slider (1500mm/59” travel) is designed with two unique preloaded V-shape ball bearing tracks which assure clearance-free moving accuracy and consistent smoothness during working. The Miter Fence System is designed with a rock-solid Fence Body with extension, a large and thick Half-Moon Indexing Gauge, and two Micro-adjustable Flip Stops. All the main parts are made of 6061 Aluminum Alloy or Stainless Steel, and precision machined by CNC Machining Centers.

The Miter Indexing Gauge is dedicatedly designed to allow for 7 Positive Stops with 0.02-degree angular accuracy. The Smart Trigger Lock device allows you to get any positive angle with one finger! In addition, the Compass-1500 Miter Gauge is equipped with a “Vernier Angle Setter” which allows you to increase your Visual Resolution of angle to 0.1 degree!

With all the dedications in design, manufacturing and craftsmanship, the ST-1500 Sliding Table is built to satisfy your most capacity demands, and your most critical requirements for table saw operations.

“Good Enough Is Not Enough”, we really hope the ST-1500 Sliding Table provides a new option for you at different level!

Thanks for the interest and enjoy your woodworking!

Harvey Team

Industrial Grade Slider

Name: COMPASS ST-1500 Sliding Table
Brand: Estimated Ship Date: Dec. 20(Imperial)
Price: 1649.0 CAD
Availability: InStock
Rating: 5.0 (2 reviews)

The Industrial Grade Slider (1500mm/59” travel) is designed with two unique preloaded V-shape ball bearing tracks which assures clearance-free moving accuracy and consistent smoothness during working.

Positive Stops and Smart Trigger Lock

The built-in miter gauge has 7 Positive Stops:

-60°, -45°, -22.5°, 0°, +22.5°, +45°, and +60°.

The precise angular settings can be achieved with the uniquely designed positive index system consisting of tapered grooves and a spherical locking pin.

The Indexing Pin with the Smart Trigger Lock is released by pressing the front button with one finger. It is fast, accurate and easy!

Laser Etched Vernier Scale

The miter gauge can be manually set to any other angle you desire.

The laser etched vernier scale is a visual aid to take an accurate measurement reading within 0.1 degree, which allows for quick and precision angle adjustments.

Micro-Adjustable Flip Stop

The Flip Stop Assembly slides in a groove on top of the fence and can be locked anywhere you choose. Once locked in place, you can make micro adjustments in 0.001" (0.02mm) increments. All graduations are laser etched.

Comes with COMPASS AH-3T Hold Down

To increase the operational versatility and convenience of the ST-1500 Sliding Table, the ST-1500 comes standard with our newly designed AH-3T Arch Hold Down which is inspired by the ancient wisdom of Arch Building Structures.

Owing to the unique Arch structure, the AH-3T hold down is able to securely clamp the workpiece in place ( with pure vertical pressure) without pressure deformation and overturning moment on the pillar shaft, thus achieving the highest stability.

Applicable for thick workpiece

Applicable for thin workpiece

Due to the AH-3T balancing leg and the Arch's mechanical design, clamping force on the working leg remains balanced without exerting bending moments on the pillar shaft, regardless of the workpiece thickness.

Premium Materials

The materials are basically Stainless Steel, 6061 T-6 Anodized Aluminum Alloy, and Brass.

All parts are designed for heavy duty load, which provides extraordinary strength and rigidity.

All the main parts of the Sliding Table is totally Rust Free.

The Compass ST-1500 Sliding Table with pre-drilled holes is compatible with most of the table saws in the market. The main fit models are as follows:

Harvey--110LG (C300), 110S, 110LC(C200) Sawstop--ICS, PCS, CNS

Grizzly--G0690, G0691, G0899

SHOP FOX--W1819, W1820, W1824

If your table saw is not in the above compatible line, you need to drill the holes on the slider by yourself to fit your table saw.

Specifications

Fence extends to 59" (1500mm)

Maximum table travel 60-19/32” (1540mm)

Maximum crosscut capacity 48-13/16" (1240mm)

Instruction Manual of COMPASS ST-1500 Sliding Table - PDF DOWNLOAD

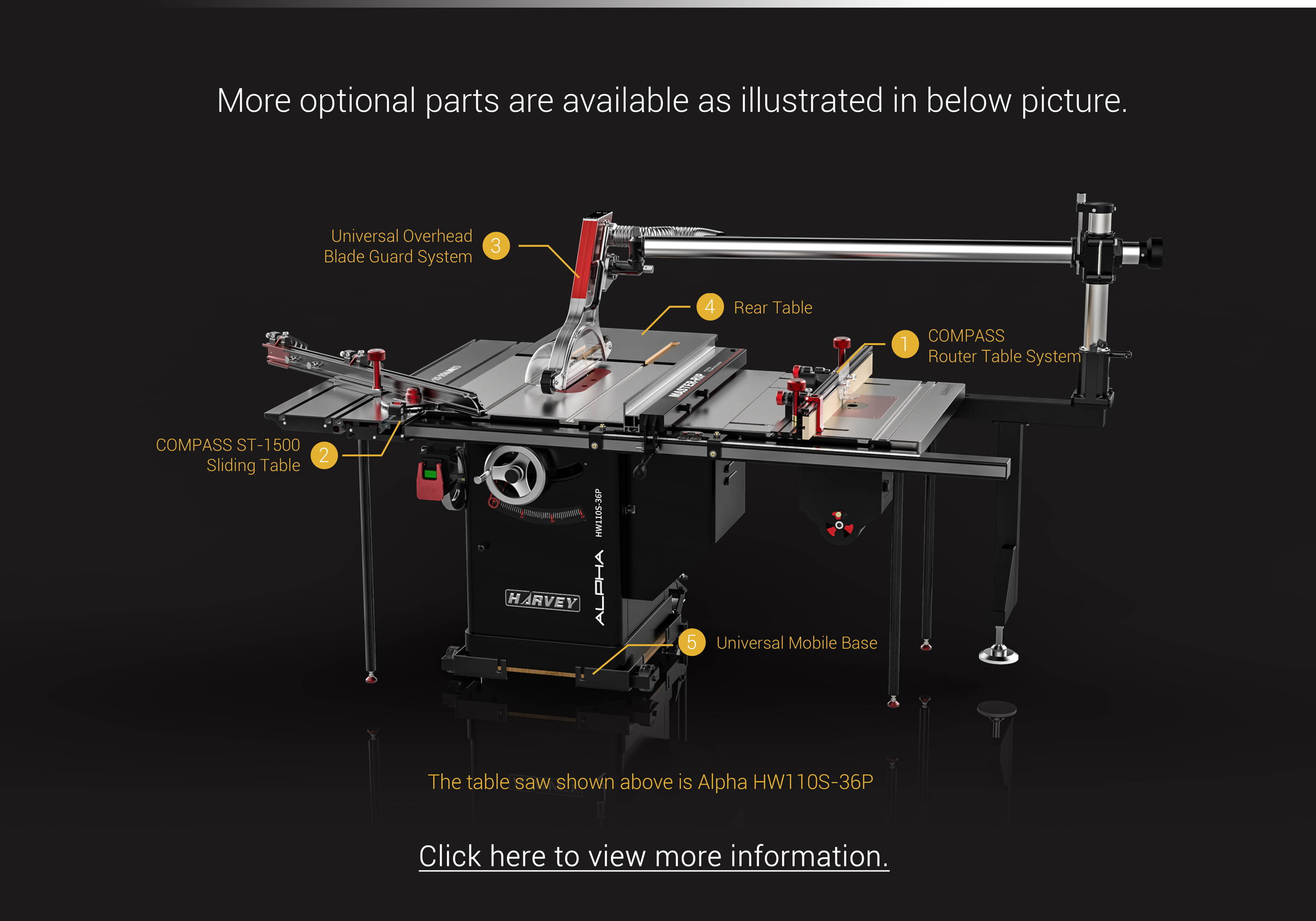

More optional parts are available as illustrated in below picture.

The table saw shown above is Alpha HW110S-36Pro

Click here to view more information.>>

"Some images on this page are computer-generated representations of the product and may differ from the actual product. Colors, textures, and other details may not be accurately represented in the images. Please refer to the product description and specifications for more information."

COMPASS ST-1500 Sliding Table

The table is very well built. I especially like the machined detents on the miter gage that lets you lock it in at common angles, with no play at all. Unlike my previous Saw stop sliding table which did have play. The vernier scale is excellent for setting all other angles as well as 1/2 of a degree, or less, if necessary. the fine adjustment on the flip stops is great as well.
