Sale Off
ALPHA HW110LC-36Pro 10

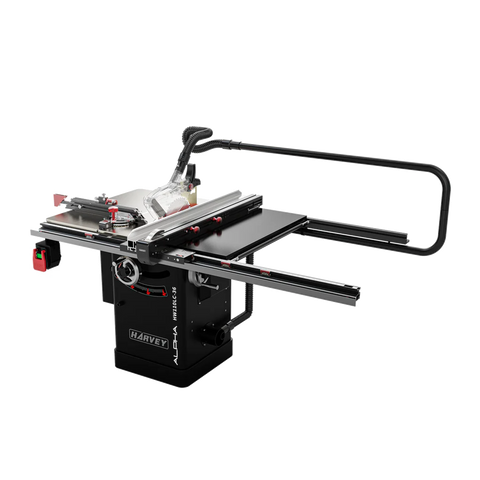

ALPHA HW110LC-36Pro

10" 2HP Stain-less Cabinet Saw with Big Eye Rip Fence



CA$4,759.00CA$4,199.00

* Tax and shipping freight will be calculated at checkout


For many woodworkers, rust on table saws has long been a source of frustration. About ten years ago, Harvey began addressing this challenge by incorporating the TiN PVD Coating technology into products, reducing wear and rust on table saw surfaces.


However, Harvey is always striving for perfection. Five years ago, we started exploring the nickel plating technology. After countless tests on the process and formulation, we have successfully implemented optimal nickel plating technology on the tabletop and the Worm Gear Trunnion System within the table saw, ensuring a literally rust-free experience for users by completely eliminating issues of wear and rust.

This superior nickel plating solution adopts the autocatalytic plating process, combining with a mid-phosphorus chemical nickel formula, significantly enhances wear resistance and rust prevention capabilities, resulting in a smoother and more lustrous finish.


Furthermore, the nickel-plated table surfaces achieved an impressive hardness of 500HV - 700HV, considerably improving their wear resistance. Extensive friction tests using wooden blocks consistently demonstrated that the nickel layer effectively protected the table surface.


We conducted a series of high-temperature and strong acid corrosion tests to evaluate the longevity of the nickel-plated surfaces. The results indicated that, under normal usage conditions, the nickel-plated surfaces could maintain their rust prevention performance for years. Notably, even in highly humid working environments, they exhibited exceptional rust prevention capabilities.


We are confident that the ALPHA HW110LC-36Pro Stain-less Cabinet Table Saw represents the ultimate solution to the rust problem in table saws. Guided by our steadfast philosophy that "Good Enough is Not Enough," these saws exemplify our unwavering dedication to innovation and precision. Central to their groundbreaking functionality is the innovative Big Eye Rip Fence System, revolutionizing woodworking precision and ease of use.


The HW110LC-36Pro series cabinet saws are a testament to performance and safety, incorporating all the exceptional features you have come to appreciate and love in the prior HW110LC-36 series.


Crafted to the highest standards of quality, the ALPHA Series HW110LC-36Pro Stain-less Cabinet Saws are not merely tools but an investment in your craft. Whether you are a seasoned professional or setting up your first woodworking shop, these saws offer the reliability and performance necessary to elevate your woodworking projects to new heights.


Features and Benefits

*Unprecedented Big Eye Rip Fence System

*Extraordinary Nickel-plated Cast Iron Table

*Unique Nickel-plated Worm Gear Trunnion System

*MG-36Pro "COMPASS" Miter Gauge

*Industrial-grade DESTROYER General Purpose Blade

*The Versatile Fence Positions

*Special Transparent Blade Guard with Optimized Protection and Dust Control

*Dust Shroud Under Blade

*Built-in Dust Collection Hose System

*Magnetic Safety Switch


Nickel-plated Cast Iron Table


Superior Durability and Resistance: The table undergoes a chemical nickel-plating process that bonds the nickel layer thickly to the base material, reaching an impressive hardness range of 500 HV to 700 HV, significantly enhancing its durability and resistance to corrosion and wear. Extensive friction tests using wooden blocks consistently demonstrated that the nickel layer can effectively protected the table surface.


Additionally, we conducted a series of high-temperature and strong acid corrosion tests to evaluate the longevity of the nickel-plated surfaces. The results indicated that, under normal usage conditions, the nickel-plated surfaces could maintain their rust prevention performance for years. Notably, even in highly humid working environments, they exhibited exceptional rust prevention capabilities.


Extended Workspace:

A 31-1/2" deep table surface provides ample space for large pieces, ensuring safe and comfortable operation.



Nickel-plated Worm Gear Trunnion System


The entire Worm Gear Trunnion System has undergone a nickel-plating process, offering exceptional rust resistance and durability.


Additionally, we conducted a series of high-temperature and strong acid corrosion tests to evaluate the longevity of the nickel-plated parts. The results indicated that, under normal usage conditions, the nickel-plated surfaces could maintain their rust prevention performance for years. Notably, even in highly humid working environments, they exhibited exceptional rust prevention capabilities. This ensures rust resistance and longevity, making the trunnion maintenance-free for rust prevention.


The saw arbor is designed to meet industrial standards with higher accuracy, and can be easily disassembled, if needed.


The saw arbor is elevated by the dovetail trunnion system. The dovetail trunnion system provides a much more smoothness and cutting accuracy, however, less vibration.


The blade tilting is completed by the worm gear trunnion system with massive cast iron. The worm gear trunnion system makes the blade tilting smoother and more accurate.


Unprecedented Big Eye Rip Fence System


An unprecedented rip-cutting solution for table saws


In order to elevate the user experience and operational efficiency of the HW110S, we've integrated our cutting-edge BIG EYE Rip Fence System into the standard features of the HW110S.


The Dual-axis Linear Guide Rail System

At the core of the Big Eye Rip Fence System lies the Dual-axis Linear Guide Rail System, featuring eight rollers with bearings that effortlessly glide along the two hardened and ground steel rods with zero clearance. This innovative design replaces traditional bushing sliding friction with smooth rolling friction, resulting in exceptional accurate fence movement (0.15mm in full length).


The Synchronized Dual-end Fence Locking Mechanism


Dual-end Clamping controlled by the linkage mechanism

The innovative Synchronized Dual-end Fence Locking Mechanism enables simultaneous clamping of the fence on to the solid front and rear guide rail bodies, allowing for "Single Action" locking, and preventing the fence from deflective drifts during cutting. With the fence locked in place, the accuracy of the fence position remains within 0.02mm (0.0008"!).


The Micro Adjustment, Fence Flip Stops and the K9 Glass Viewers


The Big Eye Rip Fence System also features a Micro-adjustment knob for extremely fine fence positioning with ease.

To achieve your streamline repetitive cutting tasks of various sizes, the Big Eye Rip Fence System comes with four (4) built-in Flip Position Stops for your quick and comfortable operations.


The Big Eye Rip Fence System introduces a very special scale viewer: The K9 Crystal Glass Window, boasting an impressive light transmittance of up to 92% and exceptional hardness, ensuring minimal visual errors (parallax) when reading measurements, offering superior durability and resistance to wear.


Comes with the MG-36Pro “COMPASS" Miter Gauge


As a member of Alpha Table Saw Family, the HW110LC table saw definitely comes with the most popular COMPASS MG-36Pro Miter Gauge.

The unique structure of MG-36Pro ensures positive angle setting accuracy as high as 0.1 degree without need of adjustment.


Every part of the body and fence are made of T-6 aircraft-grade aluminum alloy and hardened steel, and each aluminum part is anodized with beautiful color and finish.

The standard 36" crosscut fence equipped with an accurate flip stop and locking knob can meet most of your cutting demands.

Most importantly, COMPASS MG-36Pro is uniquely designed with a Quick-Action positive angle setting device which allows you to set ±60°, ±45°, ±30°, ±22.5°, ±15°, and 0° positive angles with single handed operation.


* The included MG-36Pro Miter Gauge is Imperial version by default. If you need Metric version, please contact us to replace while purchasing.


Industrial-grade DESTROYER General Purpose Blade


To enhance your woodworking experience and optimize HW110LC’ cutting performance, it also comes standard with the industrial-grade DESTROYER general purpose blade.


The BG52 Blade is designed to be a versatile blade that can be utilized on all types of cuts. The Hook Angle, Top Clearance Angle, and Top Bevel Angle are all designed to be 15°, which results in smooth finishes and high efficiency on both crosscutting and rip cuts.


The Destroyer BG52 10" GeneralPurpose Blade is an excellent choice for every woodworker. Its versatility allows you to achieve a smooth and stable crosscuts or rip cuts on any type of hardwood or softwood. With a versatile blade such as the Destroyer BG52, you won’t need to switch blades for different types of cuts, which will greatly improve your workflow and get things done quicker!


All the DESTROYER blade teeth are precision ground to ensure the accuracy of these essential angles.


The Versatile Fence Positions


The Big Eye Rip Fence System features a standard high/low fence plate to accommodate different wood thicknesses. The high fence is designed for cutting thick wood, while the low fence is suitable for thin wood.

Switching between the two fence positions is effortless with the sliding scale.


The fence plate can be installed on either left or right side of the fence body, facilitating usage on both sides of the saw blade.


Additionally, the fence plate can be conveniently slid to the front of the saw blade, providing cross-cut positioning without the risk of kickback.


Innovative ”GLIDER” Blade Guard


The “GLIDER” blade guard with aerodynamic optimization improves the dust collection efficiency.


The special transparent blade guard provides visibility for aligning the saw blade with the intended line of cut. Both side barriers automatically adjust to the thickness of the advancing workpiece.


Plug-in Quick-Release System


The patented "plug-in quick change" system allows you to change the blade guard and riving knife within a few seconds without the removal of the table insert.


Optimized Dust Collection System


Upper and lower dust collection is achieved simultaneously for clean and enjoyable cutting.


2 HP TEFC Motor


Powerful enough to provide long term performance even in the toughest conditions.



Magnetic Safety Switch


The magnetic safety switch with thermal overload protection can prevent the motor from being damaged by overheating.

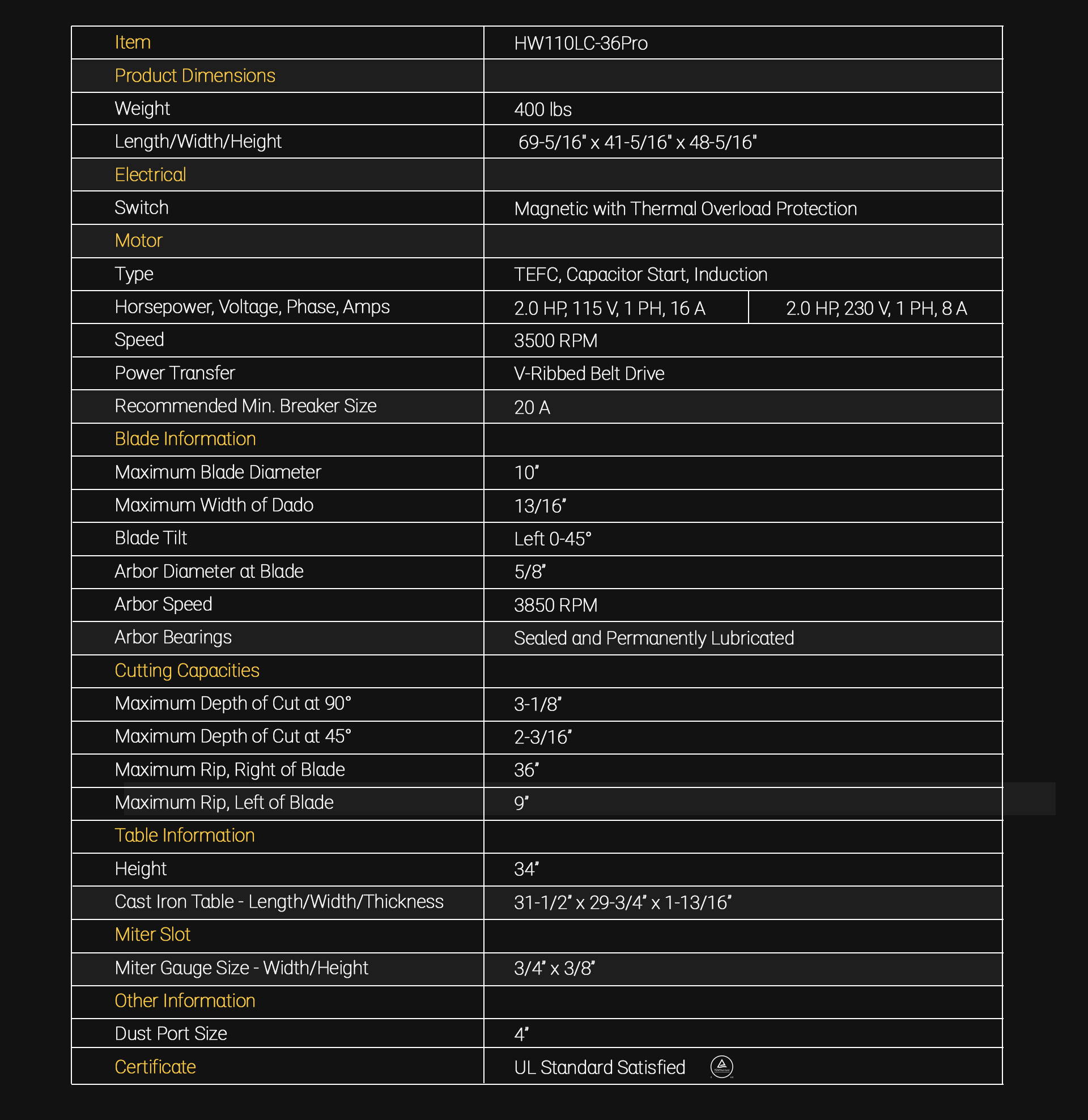

Specifications

This product is certified by the TÜV Rheinland

*This table saw can be used for 115V or 230 power. It comes from the factory pre-wiredfor 115V, if you want to use it for 230V, you need to replace some electrical parts and adjust the wiring of the motor. Please refer to the instruction manual for detailed operations.

*The power cable with plug (6-20P) for 230V needs to be purchased separately.


Optional Accessories


* Wide applicability and versatility.

* Unique dual fine-tuning mechanism provides the adjusting accuracy of 0.001”.

* Equipped scale and flip stop present the accuracy and repeatability for a wide variety of cutting tasks.

* Zero clearance dovetail mechanism provides the perfect adjusting parallelism of the two fence halves.

* The fence made of anodized aircraft-grade aluminum extrusion is durable and provides great wear-resistance and superior hardness.

* Aerodynamically designed dust port and adjustable air inlet improve your dust collecting efficiency.

* Toolless adjustment makes your operation convenient and efficient.* Premium cast iron table achieves a high flatness and superb stability.



* Industrial Grade Slider (1500mm/59” travel) assures clearance-free moving accuracy and consistent smoothness.

* Basically Stainless Steel, 6061 T-6 Anodized Aluminum Alloy and Brass provide extraordinary strength and rigidity.

* Laser etched vernier scale present you a visual aid to take an accurate measurement reading within 0.1degree.

* Equipped Micro-Adjustable Flip Stop can provide the micro adjustments in 0.001" (0.02mm) increments.

* Positive Stops and Smart Trigger Lock can help you achieve the the precise angular settings fast and easily!


* Structured with a heavy duty steel frame, cast steel joints and aircraft grade aluminum alloy material for the best rigidity.

* The unique 6 Degrees of Freedom (DOF) design allows this guard to be adjusted to any position.

* With S-12S Guard System, you can restrain the cutting dust perfectly and enjoy the clean air in your shop.

* The large, transparent PC body fully covers the blade at any tilt angle and can always be in place even when dadoing.

* The user-friendly S-12S Overhead Guard System can be used on 10” and 12” table saws, and it is suitable for most of the machine types on the market.


* The RT-10A rear table can be mounted on the rear rail directly with much convenience.

 * Equipped two slots can perfectly fit the standard miter bar, like

COMPASS

MG-36 Miter Gauge, on both sides of the blade.

* With RT-10A rear table, you can achieve a strong rear support for ripping long pieces.



Works with Bridge City Tools
